ECO Oil Impregnated Bronze 0.3125 IN ID x 0.4375 IN OD x 0.75 IN OAL Sleeve Bear
- SKU / Part Number:
- ECOP050712
Warning this product may contain chemicals known by the state of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov
ECO Oil Impregnated Bronze 0.3125 IN ID x 0.4375 IN OD x 0.75 IN OAL Sleeve Bear
ECOP050712

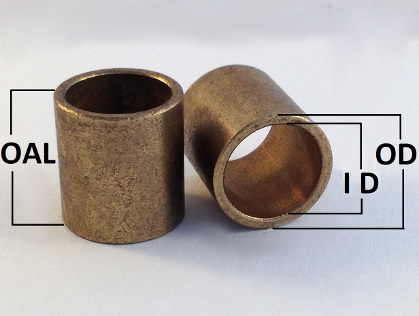

ECO Oil Impregnated Bronze 0.3125 IN ID x 0.4375 IN OD x 0.75 IN OAL Sleeve Bearing
Specifications Catalog Number ECOP050712 ECO FDA Approved Oil Impregnated Sleeve Bushings
Material Standard ECO FDA Approved Oil Impregnated Bronze
Tolerances
Inner Diameter Tolerance +0.0010/+0.0020"
Outside Diameter Tolerance+0.0020/+0.0030"
Overall Length Tolerance .005 in
ECO Product Range is USDA H-1 Approved. Conformance to ASTM chemical and physical properties.
Max Temperature 220F
Oil Impregnated with USDA Approved Lubricant. Self-Lubricating. Non Magnetic- Max PV 50,000, Max P 2,000 psi, Max V 1,200 sfpm
These standard sized oil impregnated bearings are suitable for food service applications.
Standard off-the-shelf Eco Oil Impregnated bronze bearings should function satisfactorily in temperatures up to 220F.
DFARS compliant
Made in the USA
