DPEP060810 | Driplane Sleeve Bushing | 3/8 ID x 1/2 OD x 5/8 OAL
DPEP060808 | Driplane Sleeve Bushing | 3/8 ID x 1/2 OD x 1/2 OAL
DPEP060812 | Driplane Sleeve Bushing | 3/8 ID x 1/2 OD x 3/4 OAL
- SKU / Part Number
- DPEP060810
Warning this product may contain chemicals known by the state of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov

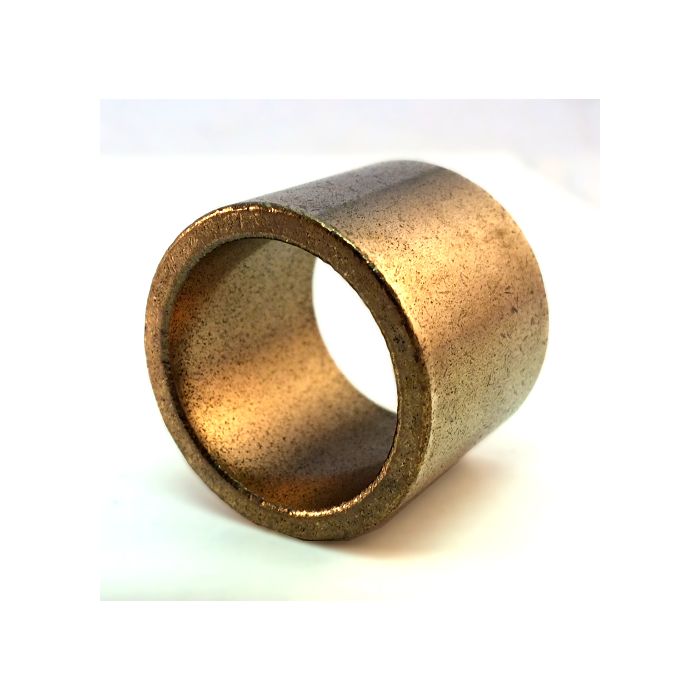

Description / DPEP060810 | Driplane Sleeve Bushing | 3/8 ID x 1/2 OD x 5/8 OAL
DPEP060810
DPEP060810 Dri Plane Plain Bearings, P/M, 3/8 " ID x 1/2 " OD x 5/8 " Length
Specifications Catalog Number DPEP060810 Dri-Plane Sintered Bronze Sleeve Bearing
Material Standard Dri-Plane Powdered Metal Bronze
Tolerances
Inner Diameter Tolerance +0.0010/+0.0020"
Outside Diameter Tolerance+0.0020/+0.0030"
Overall Length Tolerance .005 in
Dry lubricated ideal for applications that cannot have contamination of oil that is associated with most oil impregnated bronze bearings.
Max Temperature 700F
No oil for lubrication, therefore cleaner and no out gassing. Non Magnetic- Max PV 40,000, Max P 1,600 psi, Max V 1,000 sfpm
These standard size cast bronze bearings provide off the shelf economy for most applications. The CB Cast Bronze Bearings may be easily resized, oil grooved, or drilled to meet special requirements
Standard off-the-shelf dri-plane bronze bearings should function satisfactorily in temperatures up to 700F.
DFARS compliant
Made in the USA
