DPEF162012 | Driplane Flanged Bushing | 1 ID x 1-1/4 OD x 3/4 OAL x 1-1/2 FLOD x
DPEF162016 | Driplane Flanged Bushing | 1 ID x 1-1/4 OD x 1 OAL x 1-1/2 FLOD x
- SKU / Part Number
- DPEF162012
Warning this product may contain chemicals known by the state of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov
Description / DPEF162012 | Driplane Flanged Bushing | 1 ID x 1-1/4 OD x 3/4 OAL x 1-1/2 FLOD x
DPEF162012

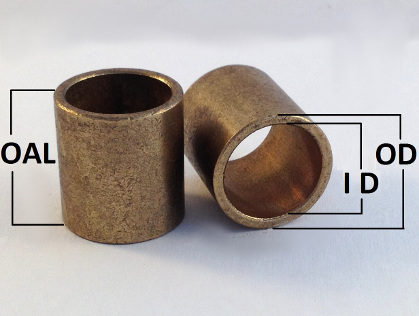

DPEF162012 Dri Plane Flanged, P/M, 1 " ID x 1 1/4 " OD x 3/4 " OAL 1 1/2 " FLOD x 1/8 " FLTH
Specifications Catalog Number DPEF162012 Dri-Plane Sintered Bronze Flanged Bearing
Material Standard Dri-Plane Powdered Metal Bronze
Tolerances
Inner Diameter Tolerance +0.0010/+0.0020"
Outside Diameter Tolerance+0.0020/+0.0030"
Overall Length Tolerance .005 in
Dry lubricated ideal for applications that cannot have contamination of oil that is associated with most oil impregnated bronze bearings.
Max Temperature 700F
No oil for lubrication, therefore cleaner and no out gassing. Non Magnetic- Max PV 40,000, Max P 1,600 psi, Max V 1,000 sfpm
Standard off-the-shelf dri-plane bronze bearings should function satisfactorily in temperatures up to 700F.
DFARS compliant
Made in the USA
