- SKU / Part Number
- C1215-24
Warning this product may contain chemicals known by the state of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov

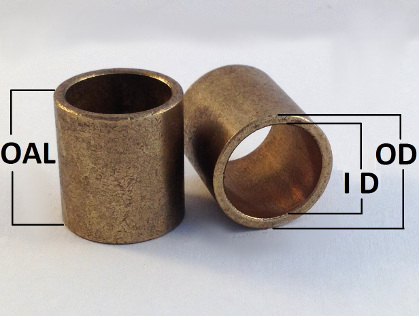

Description / CB-1215-24 | Cast Bronze Sleeve | 3/4 ID x 15/16 OD x 3 OAL
C1215-24
3/4 in IN I.D. X 15/16 in IN O.D. X 3 in IN Overall Length, C93200 SAE 660 Cast Bronze, Sleeve Bearing
SpecificationsCatalog NumberCB-1215-24 C93200 SAE 660 Cast Bronze Sleeve Bearing
MaterialContinuous Cast Bronze / ASTM B505
Material Standard SAE 660/C93200
Tolerances
Inner Diameter Tolerance +.001 -.001 in
Outside Diameter Tolerance+.002 to .003 in
Overall Length Tolerance .005 in
Chemical Composition- Copper (83%), Tin (7%), Lead (7%) Zinc (3%)
QQ-C-390B, Type III
Ideal for most general bearing applications. Additional lubrication may be necessary - Max PV 75,000, Max P 4,000, Max V 750
These standard size cast bronze bearings provide off the shelf economy for most applications. The CB Cast Bronze Bearings may be easily resized, oil grooved, or drilled to meet special requirements
Cast Bronze Bearings are machined from continuous cast C93200 Bearing Bronze per ASTM B505. The continuous casting process ensures a uniform grain structure throughout the bearing.
Standard off-the-shelf cast bronze bearings should function satisfactorily in temperatures up to 450F.
DFARS compliant
Made in the USA
