BBEP141610 | BB-16 Sintered Iron/Copper Sleeve | 7/8 ID x 1 OD x 5/8 OAL
BBEP141616 | BB-16 Sintered Iron/Copper Sleeve | 7/8 ID x 1 OD x 1 OAL
- SKU / Part Number
- BBEP141610
Warning this product may contain chemicals known by the state of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov
Description / BBEP141610 | BB-16 Sintered Iron/Copper Sleeve | 7/8 ID x 1 OD x 5/8 OAL
BBEP141610

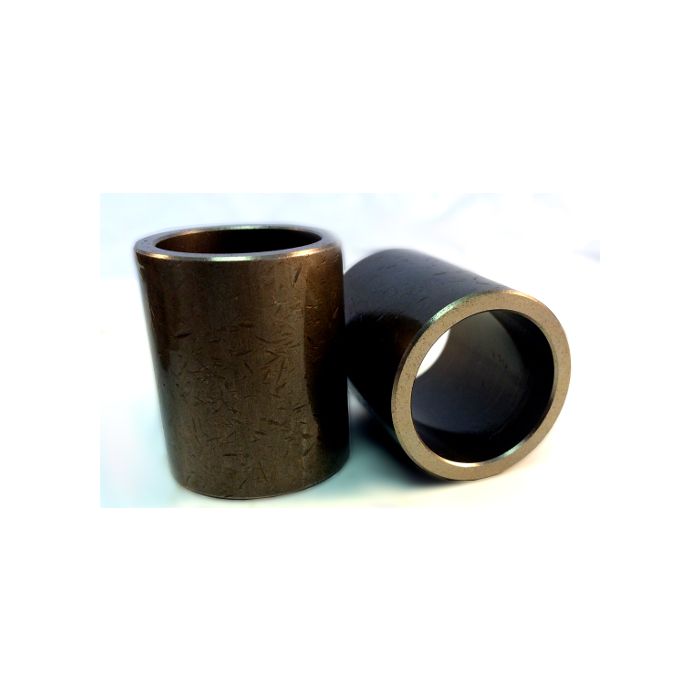

BBEP141610 Sleeve Bearing, P/M BB16, 7/8 " ID x 1" OD x 5/8 " OAL Powdered Metal Copper Iron BB-16
Specifications Catalog Number BBEP141610 BB-16 Sintered Iron-Copper P/M Sleeve Bearing
Material Standard: BB-16 Heat Treated to a particle hardness greater than Rc50
Tolerances
Inner Diameter Tolerance +0.0010"/+0.0030"
Outside Diameter Tolerance+0.0020"/+0.0040"
Overall Length Tolerance .005 in
These oil impregnated bushings are impregnated with extreme pressure oil for self-lubricating properties.
Max Temperature 220F
Typically used for heavy loaded applications. These bushings have excellent compressive strength, wearability, and shock resistance- Max PV 75,000, Max P 5,000 psi, Max V 35 sfpm
Standard off-the-shelf BB-16 bronze bearings should function satisfactorily in temperatures up to 220F.
DFARS compliant
Made in the USA
