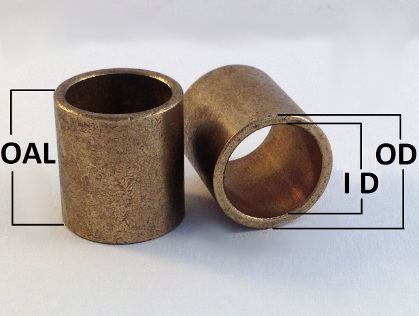

AA-101-2 | Oil Impregnated Bronze Sleeve | 1/8 ID x 3/16 OD x 1/4 OAL

AA-101-2 SAE841 SLEEVE 1/8 ID x 3/16 OD x 1/4 OAL1010020.125 IN I.D. X 0.190 IN O.D. X 0.25 IN Length, SAE 841 Powdered Metal Bronze, Sleeve BearingSpecificationsCatalog NumberAA-101-2 SAE841 SLEEVE Bearing Oil Impregnated BronzeMaterialPowdered Metal / Oil Impregnated BronzeMaterial StandardSAE 841TolerancesInner Diameter Tolerance +.000 -.001 inOutside Diameter Tolerance+.000 -.001 inOverall Length Tolerance .005 inChemical Composition- Copper (87-90%), Tin (8-9), Iron (1.0% Max) Carbon (0.1%), other elements less than 0.1%MPIF: CT-1000-K26 ASTM: B438 Grade 1, Type 2 Class ASAE 841 - BronzeMil-B-5687 Type 1, Grade 1Ideal for heavy loads at moderate speeds or light loads at high speeds - max Pv 50,000, P-Load 2,000, V-SFM-1,200Self-lubricating - when in motion oil rises to the surface for lubrication and restores itself when at rest. After forming, sintering and sizing, the bearings are vacuum impregnated with SAE 30 oil that provides lubricant which is metered from the bearing to the shaft during rotation. Standard off-the-shelf oil impregnated bronze bearings should function satisfactorily in temperatures ranging from 10F to 220F.RoHS, REACH, DFARS compliant Made in the USA
